12V 24V 48V Power Probe Super Automotive Car Circuit Tester Power scan breaker Open Circuit Reader Voltage Current Tester Detect

12V 24V 48V Power Probe Super Automotive Car Circuit Tester Power scan breaker Open Circuit Reader Voltage Current Tester Detect

This product is currently out of stock and unavailable.

Description

Pro Power Probe Carfix Lab Assure

Pro Power Probe is the best electrical tester for reducing diagnostic time in all 12 24 48 volt Vehicle electrical systems. After a simple hook-up of the tool to the vehicle’s battery.

Pro Power Probe Features:

1. Multi-language support: English German French Russian Spanish Italian Portuguese 2. Integrate LED flashlight on the head, let us work in dark condition easily 3. All the clips and cable were made from copper, improve pro power probe stability during operation 4. Testing for continuity with its built-in auxiliary ground lead. 5. By depressing the power switch, conduct a positive or negative battery current to the probe tip for testing the function of an electrical component without the use of jumper wires. 6. Testing for poor ground contacts instantly without performing voltage drop tests. The tool is also short-circuit protected; its internal circuit breaker will trip if it becomes overloaded. 7. Following and locate short circuits without wasting fuses. The tool’s long cable allows you to test along the entire length of the vehicle without constantly searching for suitable vehicle grounds.

Pro Power Probe Functions

1. Perform these functions: power injection, measuring, ground testing, polarity checking, continuity testing and component activation. 2. Read the AVO meter, voltage, current, and resistance easily. 3. Press the power switch lightly and get the instant heat ground lead to energize the electrical components, such as the cooling fan, relay etc. 4. Activate the components by using the hot wire and ground lead simultaneously. 5. Determine the positive, negative and open circuit quickly. 6. Test the bad ground contacts quickly, follow and locate short circuits without wasting the fuse. 7. Test the continuity of the power switch, relay and diode quickly. 8. Protect the tool from overload through the inner circuit breaker. 9. Allow you to work in the dark area by using the built-in head light. 10. Operate the tool without looking at the menu once users are familiar with the tone. Test along the vehicle by the long cable.

Pro Power Probe Parameter:

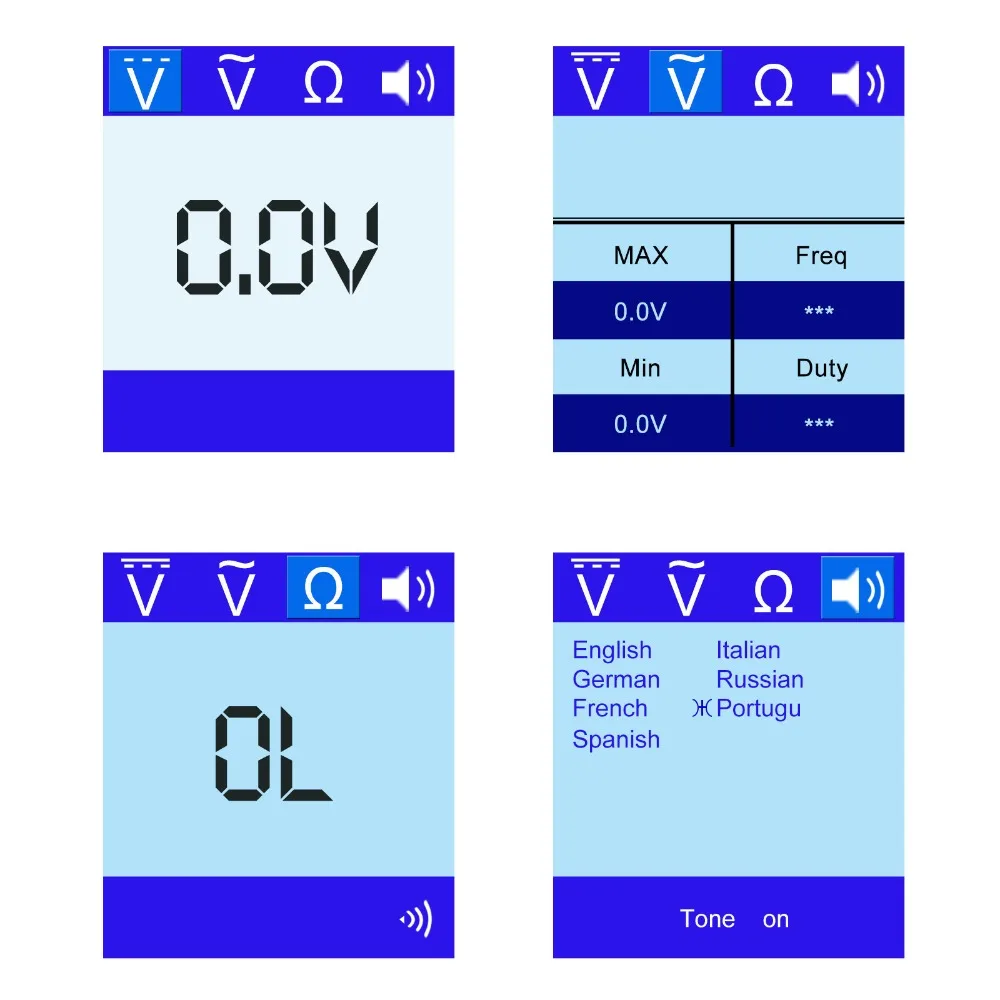

1)Display: TFT color display (160 x 128 dpi) 2)Operating Temperature: 0 to 60?C (32 to 140 F) 3)Storage Temperature: -40 to 70?C (-40 to 185 F) 4)External Power: 12.0 or 24.0 V power provided via vehicle battery

Carfix Lab Warm Note:

This probe is very sharp on the pointed end, easily to get hurt. Better to be more careful when performing.

Carfix Package List

1* P100 PowerScan (Carfix Lab Assure) 1 *Rugged Blow Molded Case 1 *20ft. Extension Cable 1 *Probe Tip 1 *Battery Hookup Clips 1 *Cigarette Lighter Adapter 1 *User Manual Carfix Carry Case for Power Probe

external
size chest(in.) waist(in.) hips(in.)
XS 34-36 27-29 34.5-36.5
S 36-38 29-31 36.5-38.5
M 38-40 31-33 38.5-40.5
L 40-42 33-36 40.5-43.5
XL 42-45 36-40 43.5-47.5
XXL 45-48 40-44 47.5-51.5

Additional information

Weight 1.5 kg
Dimensions 22 × 18 × 8 cm
Color

Pure Black

Electrical Tester Function:

Power Probe Circuit Tester

language

English, French, German, Italian, Portuguese, Russian, Spanish

Model Name

Pro Power Probe

Car Circuit Tester Feature

Car Electrical Probe Diagnostic Tool

External Testing Certification

ce

Auto Car Powerscan Feature:

Power Probe Tester

Carfix Pro Power Probe Feature

Automotive Car Analyzer

Material Type

Plastic

Electronic

No

Item Length

7inch

Item Type

Electrical Testers & Test Leads

Brand Name

carfix

Software Version

Newest Powerscan

Item Height

1.1inch

Voltage

Dec-48

Power Probe Cable Length

22 inch

Power

24W

Item Weight

1.3kg

Item Width

1.85inch

Hardware Version

Power Probe 4
